Chamflex - 3/4" x 36" - Water Source Heat Pump Hose Assembly - Stainless Steel

Model: CH075036FM1000

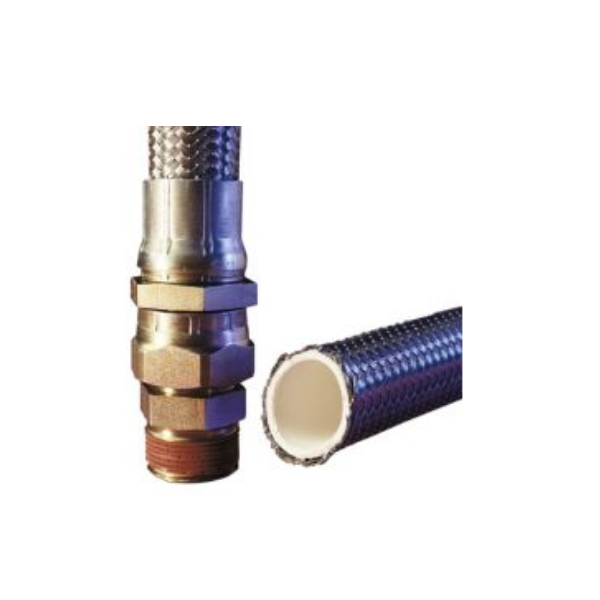

The ChamFlex Water Source Heat Pump Hose is a ‚¬œClass A‚¬� fire rated hose assembly with fixed male pipe thread on one end and swivel with male pipe adapter on the other end. The tube compound has been tested to, and awarded, a UL 94 V-0 fire rating, the highest standard in the industry. The patented process, which bonds the inner tube to a stainless steel wire outer braid minimizes the possibility of the hose assembly kinking during installation.

• UL94 V-0 tube has highest fire retardant rating in the industry
• Custom hose lengths provide easier installation at reduced cost
• Coated steel-braided cover provides superior abrasion resistance
• Patented bonding of tube to stainless steel-braided cover improves flexibility for better bend radius
• Red Thread sealant is applied to all Male Pipe Thread (MNPT) fittings, eliminating the time and effort of sealant application for installation
• Our unique washer-less, all metal, 37 degree JIC flare hose union installs easily, is resealable after service disconnection, and eliminates the possibility of leaks
